Yes, recessed can lights can be installed in a suspended ceiling. Use fixtures rated for suspended or drop-ceiling grids, which clip directly into a standard 15/16-inch T-bar grid. LED versions draw as little as 9 to 15 watts while delivering 650 to 1,100 lumens, making them the most practical choice for drop-ceiling spaces.
Can lights in a suspended ceiling are a practical, widely used solution for basements, offices, and renovated rooms where a drop-ceiling grid is already in place. According to ENERGY STAR, LED lighting products produce light up to 90 percent more efficiently than incandescent bulbs, which makes LED recessed fixtures the clear choice for any drop-ceiling project. This guide covers fixture types, installation steps, lumen calculations, and design tips so you can plan your project with confidence.
Can recessed lights be installed in a drop ceiling?
Yes, recessed lights can be installed in a drop ceiling. Purpose-built recessed fixtures are designed to clip directly into the T-bar grid without requiring any cutting into the plenum above. The housing sits above the grid tile, the trim ring rests flush against the tile face, and a standard electrical connection is made in the plenum space. Installation is straightforward for most drop-ceiling systems when you use the correct fixture type.
A drop ceiling, also called a suspended ceiling, is a secondary ceiling hung below the structural ceiling on a metal grid framework, creating a hidden plenum space above. That plenum is exactly where recessed fixture housings live, which is why drop ceilings and recessed lighting are a natural pairing.
The key requirement is selecting a fixture labeled for use in suspended or drop-ceiling grids. Standard new-construction recessed housings are designed to attach to wood joists or metal framing, not to a T-bar grid, so using the wrong housing type creates a safety risk and an uneven appearance.
What kind of lights can you put in a drop ceiling?
Drop ceilings accept several fixture formats: recessed can lights that clip into the T-bar grid, flat LED panel troffers in 2x2 or 2x4 sizes that drop into a standard grid opening, and surface-mounted fixtures that attach directly to the grid rails. Each format suits a different room and budget. Recessed cans deliver a clean, minimal look; 2x2 and 2x4 LED panels offer broad, even coverage; surface-mounted fixtures work where plenum depth is limited.
Canless LED recessed lighting for drop ceilings is increasingly popular because the slim housing requires very little plenum clearance, sometimes as little as 3 to 4 inches, making it viable even in tight spaces. Traditional can fixtures with a separate housing and trim ring need slightly more depth but are widely available and easy to source.
For rooms where the drop ceiling is meant to look polished rather than utilitarian, a pendant light threaded through a cut tile adds visual warmth and character. A fixture such as the Vintage LED Ceiling Light Retro Acrylic Fixture works well in a small finished basement or studio where a single decorative point of light complements the recessed field. The Milk Glass Hanging Lamp with Brass Accents brings a warm retro character that softens the grid's industrial quality.
How do you install can lights in a suspended ceiling?
Installing can lights in a suspended ceiling involves four main steps: remove the ceiling tile in the target location, clip or set the fixture housing into the T-bar grid opening, connect the fixture wiring to a junction box located in the plenum above, and restore or trim the ceiling tile around the fixture's trim ring. No structural cutting is required when you use a grid-rated fixture, which makes the process accessible for an experienced DIYer, though a licensed electrician should handle all wiring connections.
Before you begin, plan the layout on paper. Mark the grid squares where each fixture will go, keeping fixtures evenly spaced to avoid dark spots between them. A common spacing for recessed cans in a drop ceiling is one fixture for every 25 to 40 square feet of floor area, adjusted based on the lumen output of each fixture.
Run the electrical cable through the plenum between junction boxes before inserting any fixtures. Most grid-rated recessed housings include a built-in junction box or a quick-connect cable port, which speeds up the wiring step considerably. Always confirm that the cable and junction box are rated for use in a plenum space, because building codes in many jurisdictions require plenum-rated wiring above a suspended ceiling.
For guidance on spacing recessed fixtures in a living area, the can lights living room placement guide covers layout rules that translate directly to drop-ceiling rooms as well.
How many lumens do drop ceiling lights need?
General lighting guidance calls for 20 to 30 lumens per square foot for ambient light in most residential and light commercial rooms. A 150-square-foot room therefore needs roughly 3,000 to 4,500 lumens in total, spread across however many fixtures you install. Rooms used for detailed tasks such as a home office or workshop benefit from the higher end of that range, while a hallway or lounge can use the lower end.
As ENERGY STAR notes, brightness is measured in lumens rather than watts. A 60-watt incandescent equivalent produces at least 800 lumens, and a 75-watt equivalent produces at least 1,100 lumens. Knowing these equivalences helps when comparing older fluorescent troffer outputs to modern LED panel ratings.
The table below maps common room sizes to a recommended lumen target, a suitable fixture format, and a typical LED wattage range, using the 20 to 30 lumens per square foot rule throughout. Use it as a starting point and adjust upward if the room has dark walls or low reflectance surfaces.
| Room Size (sq ft) | Fixture Format | Recommended Lumens | Typical LED Wattage |
|---|---|---|---|
| 80 | 2x2 LED panel or 2 recessed cans | 1,600 to 2,400 | 18 to 28 W |
| 120 | 2x4 LED panel or 3 recessed cans | 2,400 to 3,600 | 28 to 40 W |
| 150 | 2x4 LED panel or 4 recessed cans | 3,000 to 4,500 | 36 to 50 W |
| 200 | Two 2x4 panels or 5 to 6 recessed cans | 4,000 to 6,000 | 46 to 68 W |
| 300 | Three 2x4 panels or 8 recessed cans | 6,000 to 9,000 | 68 to 100 W |
For a deeper look at how lumen counts translate to real-room brightness, the how bright is 800 lumens guide provides room-by-room context that complements the table above.
Are drop ceilings still in style?
Modern drop ceilings with slim LED panels or recessed fixtures look clean and contemporary, and designers use them regularly in basements, home offices, and renovated commercial spaces. The stigma once attached to drop ceilings came from outdated fluorescent tube fixtures and yellowed acoustic tiles, not from the grid system itself. Updated tile materials, white or black grid rails, and well-chosen lighting change the entire character of the ceiling.
Designers today often paint the grid rails and tiles a uniform matte white or a deep charcoal to make the grid lines recede visually. When recessed LED cans sit flush in those tiles, the ceiling reads as a smooth, intentional surface rather than an afterthought. In basement renovations especially, a drop ceiling with recessed lighting is a practical choice that also looks polished.
Commercial-style 2x2 and 2x4 LED panel troffers have also evolved in appearance. Slim, edge-lit versions with a low profile look far more refined than the bulky fluorescent fixtures they replace, and they deliver consistent, even illumination across the entire grid opening.
How to make a suspended ceiling look better?
Replacing outdated fluorescent tubes with recessed LED cans, adding a pendant through a cut tile as a focal point, and choosing a consistent trim finish across all fixtures are the three most effective ways to improve the appearance of a suspended ceiling. Each change addresses a different visual problem: uneven light quality, a flat and featureless plane, and mismatched hardware that draws the eye for the wrong reason.

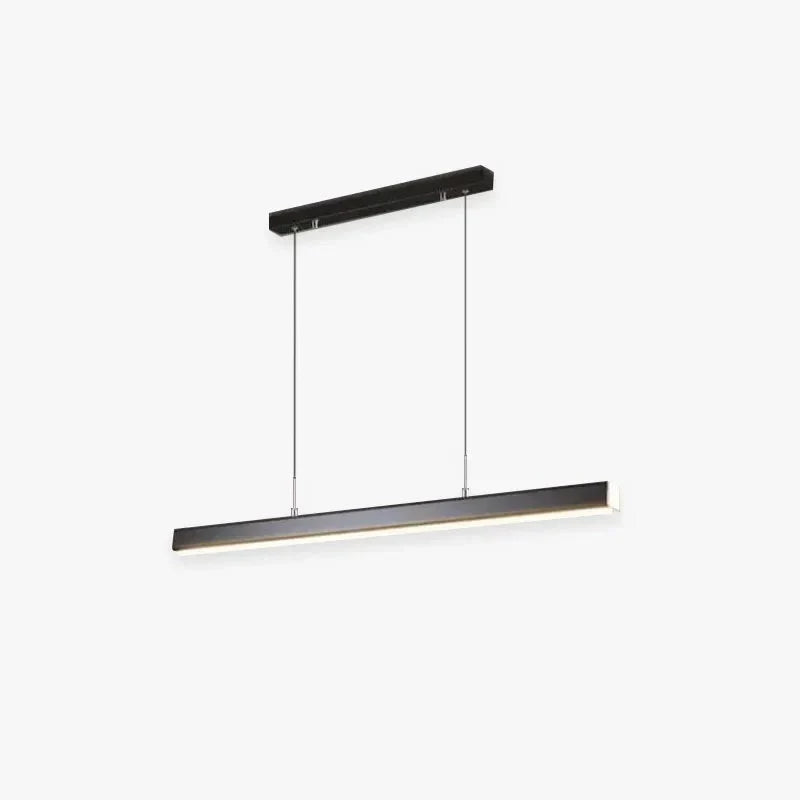

A pendant light hung through a single cut tile creates a visual anchor in a dining area or reading nook set beneath a drop ceiling. The Bar Hanging Lamp in Metal and Acrylic with Three Color Modes is a dimmable, hardwired LED pendant with three selectable color temperatures that suits a dining area or kitchen island directly below a drop ceiling. Its linear metal shade draws a horizontal line that complements the grid's geometry rather than fighting it.
Finish consistency matters as much as fixture choice. If the recessed can trim rings are brushed nickel, the pendant hardware should carry a similar cool metallic tone. Mixing warm brass trim with cool chrome rings across the same ceiling creates a disjointed look that undermines even a well-planned layout.
Is canned lighting outdated?
Traditional incandescent can fixtures with deep housings and bulky trim rings are fading from new installations, but canless LED recessed fixtures with slim profiles and selectable color temperatures are widely considered a current and versatile choice. The format itself is not outdated; the technology inside it has simply changed. Canless LED recessed lighting for drop ceilings integrates the driver, light source, and trim into a single thin unit that sits nearly flush with the tile surface.
The shift from incandescent to LED also changed the color temperature conversation. Modern canless fixtures allow the installer to select between warm white, neutral white, and cool white at the time of installation, sometimes with a switch on the fixture itself. That flexibility means one SKU can serve a cozy basement lounge or a bright home office without any hardware change.
For rooms where a recessed field alone feels too uniform, a statement pendant adds the design interest that a grid of cans cannot provide on its own. The Gold Glass Pendant Light in Amber Glass introduces warm amber tones that contrast beautifully with the cooler output of surrounding LED recessed cans, giving the room visual depth without requiring any structural change to the drop ceiling.
Conclusion
Can lights in a suspended ceiling are a proven, energy-efficient solution for any room with a drop-ceiling grid. The single most important step is matching the fixture format to the room size using the 20 to 30 lumens per square foot rule, then selecting a grid-rated LED housing that clips cleanly into the T-bar without plenum modifications. Whether you fill the entire grid with canless LED recessed fixtures, mix in a 2x2 or 2x4 panel troffer for broad coverage, or add a pendant as a focal point, the result is a ceiling that looks intentional and performs well for years. Explore the full range of options in the OroDwell ceiling lamps collection to find fixtures that suit your grid layout and room style.
Frequently asked questions
What is a suspended ceiling called?
A suspended ceiling is also called a drop ceiling, a dropped ceiling, or a T-bar ceiling, referring to the metal T-bar grid that supports the acoustic tiles. In commercial settings the term lay-in ceiling is also common. All of these names describe the same system: a secondary ceiling hung below the structural ceiling on a framework of metal rails, creating a hidden plenum space above.
Does a drop ceiling decrease home value?
A drop ceiling does not automatically decrease home value. In finished basements and renovated commercial spaces, a well-installed drop ceiling with recessed LED lighting is viewed positively by buyers because it hides mechanical systems neatly and provides easy access for repairs. A ceiling with stained or sagging tiles and outdated fluorescent fixtures, however, can read as deferred maintenance. Updating the tiles and replacing old fixtures with LED recessed cans is the most effective way to protect or improve perceived value.
Can I use a pendant light in a drop ceiling?
Yes, a pendant light can be used in a drop ceiling. The standard approach is to cut or remove one ceiling tile and install a support bracket across the T-bar grid rails, then thread the pendant's canopy and cord through the opening. A hardwired pendant connects to a junction box in the plenum above. Choose a pendant with a canopy wide enough to cover the cut opening cleanly for a finished appearance.
What is the difference between a 2x2 and a 2x4 drop ceiling light?
A 2x2 drop ceiling light fits a 24 by 24 inch grid opening, while a 2x4 light fits a 24 by 48 inch opening. Both formats drop directly into the T-bar grid without additional hardware. A 2x4 panel typically delivers higher total lumen output and covers more floor area per fixture, making it efficient for larger rooms. A 2x2 panel suits smaller rooms or spaces where a finer grid pattern is preferred for aesthetic reasons.
How do I choose between recessed cans and LED panel troffers for a drop ceiling?
Choose recessed cans when you want a minimal, residential look with directional light and the flexibility to aim fixtures at specific areas. Choose LED panel troffers in 2x2 or 2x4 sizes when you need broad, even illumination across a large floor area with fewer individual fixtures to wire. Panels are generally more efficient per lumen in large open rooms, while recessed cans give finer control over light placement in smaller or more varied spaces.
